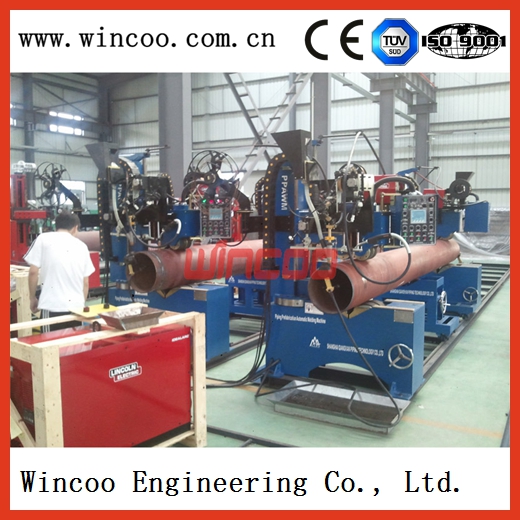

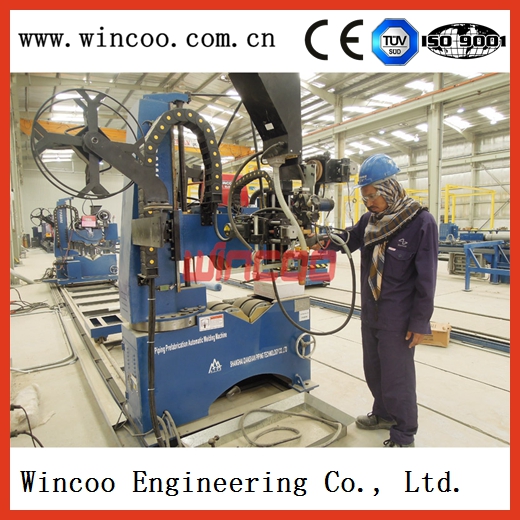

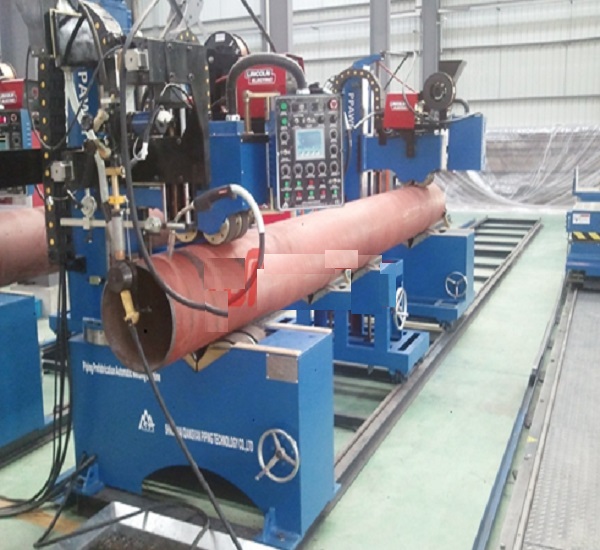

Heavy-Duty Cantilever Type Automatic Pipe Welding Machine

Product name:  New High Quality Muti-function Pipe Automatic Welding Machine with Three Welding Torches (TIG+MIG+SAW)



Features & technical specification:



1

Control System

PLC Control

2

On-line performance

Good

3

Diameter Applicable

DN50-600

4

Wall Thickness

3-30MM, 10-60mm

5

Welding line applicable

various butt welding lines of spool pieces such us pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.

6

Welding Procedure

TIG+MIG+SAW for root pass, fill in and cap pass welding

7

Suitable Material

C.S,S.S,Alloy Steel Pipe Spool Fabrication

8

Reference List

CNPC, SINOPEC, CNOOC, CNCEC, K. S. S, L & T, CSIC, CSSC, MCC, TECHNIP, TYCO, KEPPEL, DYNA-MAC, SOCOMENIN, C. C. C, CNEG, CHIYODA, EIL, PEC, CASC, ONSHORE etc.
