1.Carbon steel , Stainless steel circumferential seam gouge, grinding and polishing. 2.Vessel internal stainless steel cladding welding layer grinding and polishing 3.Vessels internal and external circumferential, longitudinal seam, weld reinforcement part grinding and polishing. Use before vessel fitting-up. 4.V bevel type vessel.

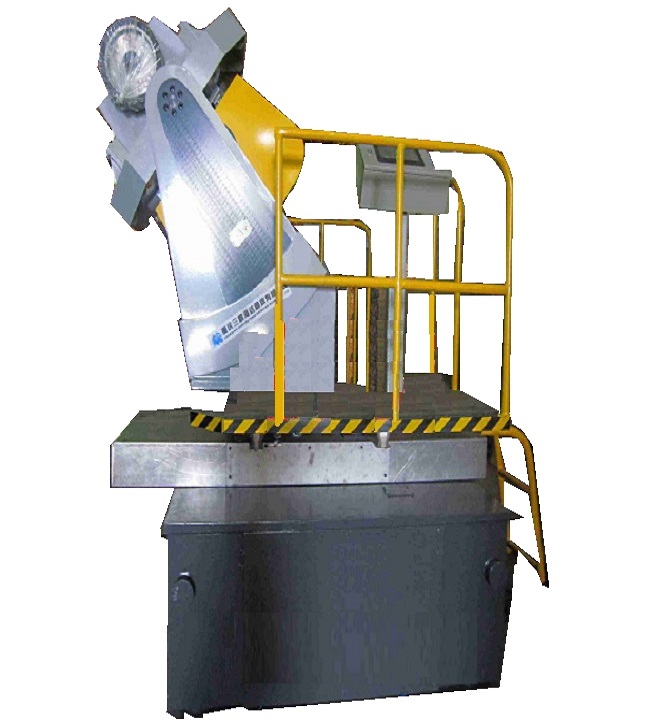

1.Application 2M58ZSM7.5×6 is used for internal/external circumferential and longitudinal seam, cladding seam grinding and gouge of boiler, pressure vessel and related vessels. 2.System configurations and technical data (Please refer to following chart and pictures ) 2.1. System configurations It consists of ZSM7.5×6 cross manipulator, MW-1300 multifunctional abrasive wheel and abrasive belt head, SG*5.0 dust removal system, pneumatic control system and related electronical system.

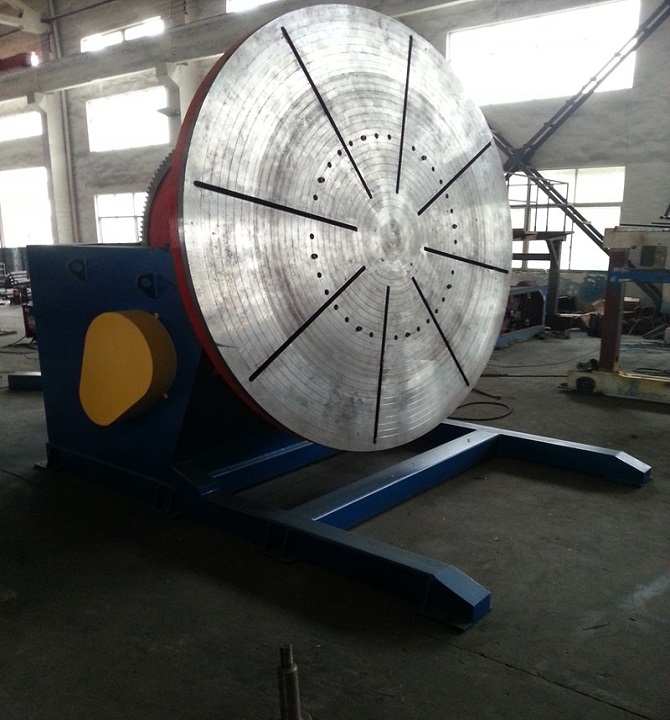

Welding positioners(turn table)are usually used for welding of shafts,plates and cylinders.There are T-slots for clamping and positioning of vessels.Welding table could do 360^ rotating movement and 120^ tilting movement.Pedestal of machine adapts airframe structure and its overall stability is good,no need to fix it on ground.Hand-control box is offered,being convenient.

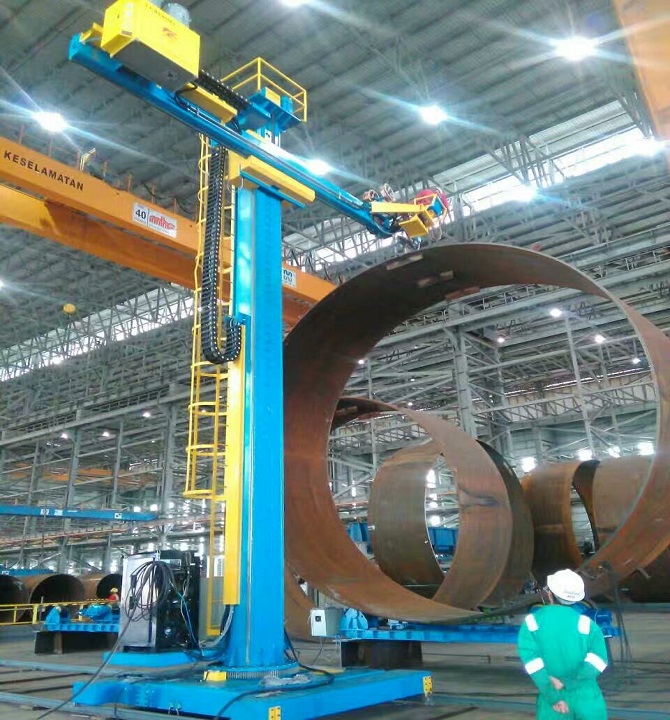

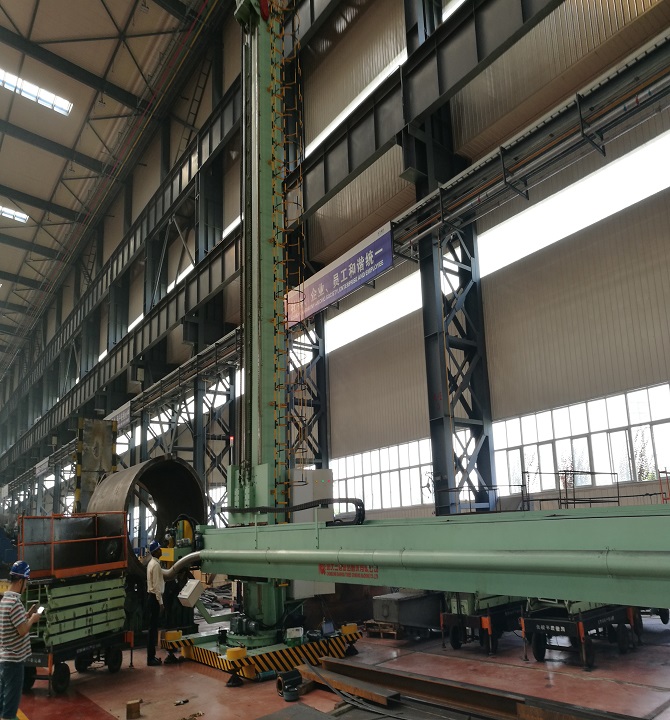

Welding manipulator/welding column and boom is a kind of widely-used and high-automated auxiliary equipment in welding industry.Through the rotation of column and retraction&lifting of boom,welding manipulator meets welding requirements of cylinders with different sizes.Welding head is fixed at one end of welding manipulator to carry out automatic welding.This kind of welding manipulator could also be operated together with welding rotator/tank turning roller to carry out round and longitudinal welding of inside and outside seam,which has got extensive application in Boiler,Petrochemical,Shipbuilding and Steel structure industries.

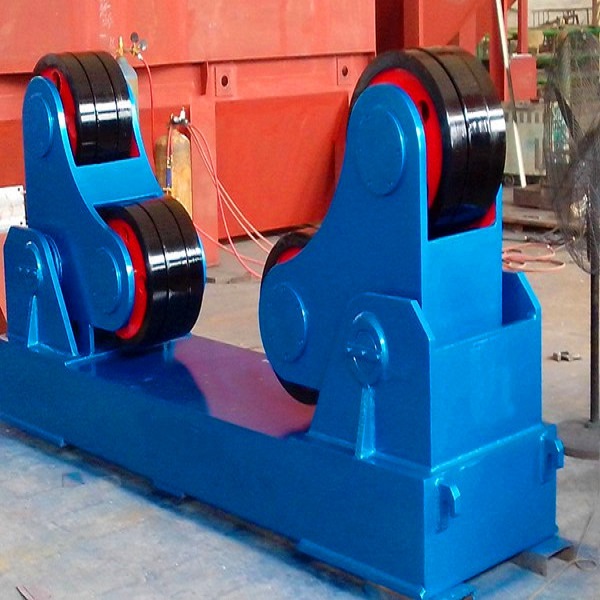

Conventional welding rotator consists of one drive unit and one idler unit to meet welding requirement of hand-welding,automatic welding requirements of hand-welding,automatic welding and automatic submerged arc welding.Roller distance is adjusted by screw arbor or bolt.It is especially suitable for cylinder with much smaller(lighter than 5 tons)or much bigger weight(heavier than 200tons).Rotators could be made of rubber,Steel Or PU,It is all on customer’s requirement.

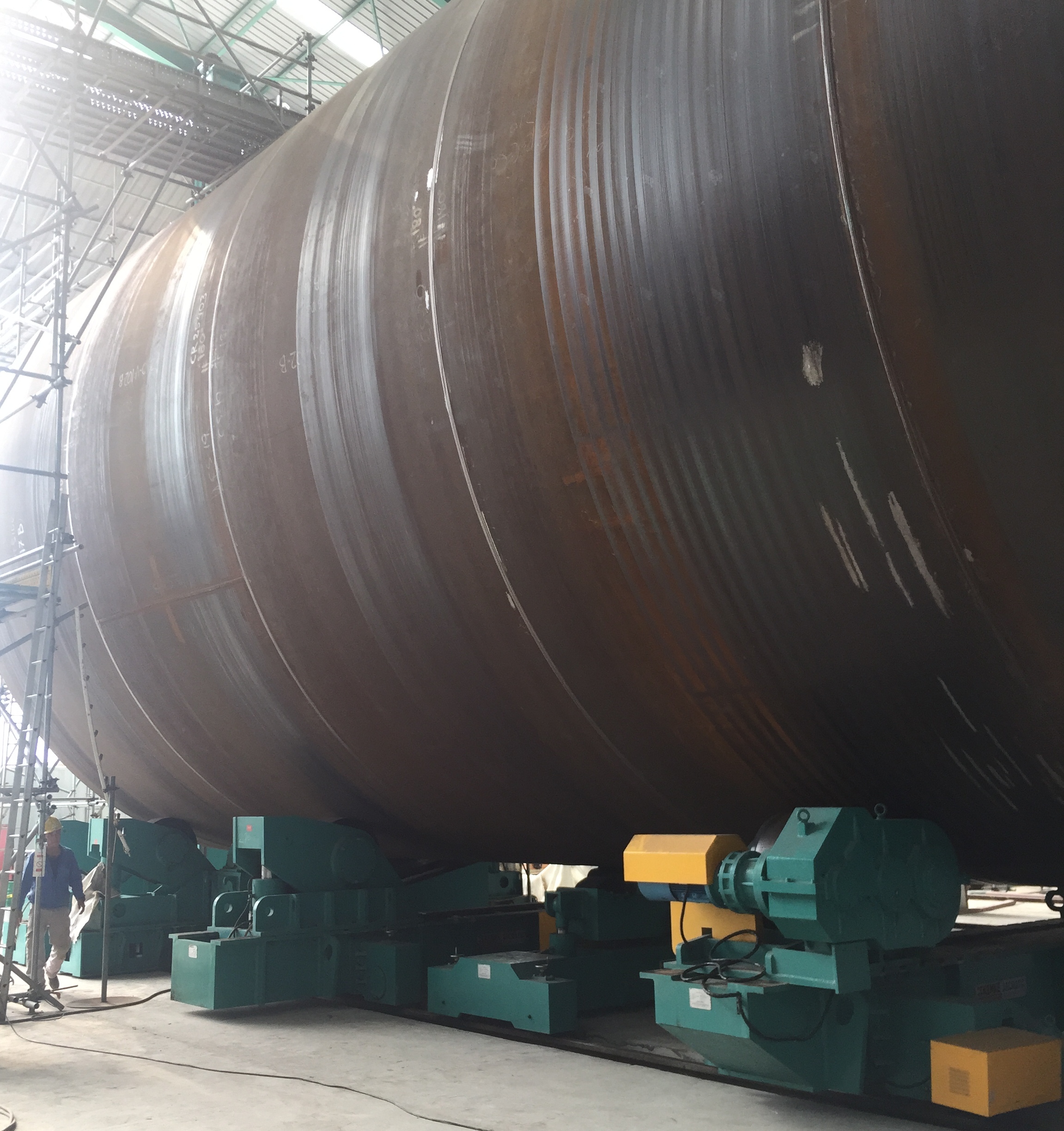

Welding rotator is mainly used to weld,burnish,assemble,assemble the cylinder-vessel,its series include self aligning rotator,conventional rotator,tilting rotators,and drift rotators,traverse type rotators,we can provide solutions to unique welding rotator according to the customer’s requirement.

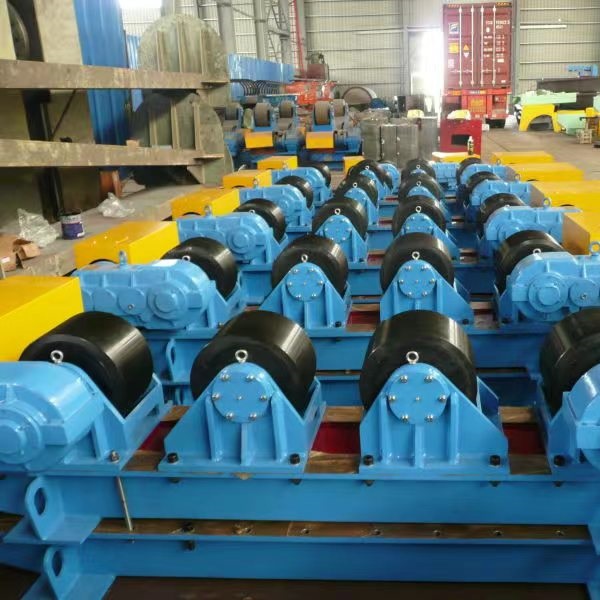

HGZ type self aligned welding rotator(turning roll)is designed on the base of welding requirements of pressure vessels,and absorbs advantage of similar products both from domestic and international market.The rotation of vessel is carried out by friction of Power unit and vessel.This kind welding rotator attribute a lot in the round and longitudinal welding of metallic cylinder(tank,pipe).HGZ welding rotator adjusts roller distance automatically,no need to do manual adjustment.Rotators are made of rubber,Steel or PU,it is all on customers’ decisions.Advanced technique,sound quality and convenient operation guarantee customer’s satisfaction.
