Submerged Arc Automatic Tank Welding Machin

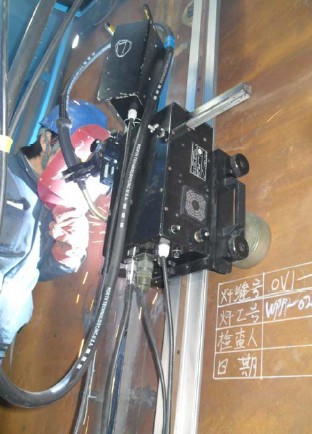

Gas-electric welding machine is a high-efficiency automatic welding equipment, which adopts current feedback to closed-loop control vehicle lifting. The thickness of welding joint primary forming is up to 50mm. It is mainly used for thick plate welding in petroleum, chemical industry, blast furnace and shipbuilding industries.
Features
1.Welding forced water cooling, one - time molding
2.The liquid level of molten pool is controlled automatically, and the length of welding wire is adjusted automatically
3.Aluminum alloy track, magnet adsorption, easy to disassemble
4.Small size, light weight, module structure, flexible and convenient to use
Specification
Plate Width | 1.6-3.2m |
Plate Thickness | 8-80mm |
Min Diameter | 6m |
Welding Speed | 0-250mm/min |
Fast Speed | 550mm/min |
Model
Product | Model | Application |
Gas-Electric Welder | MEGW -I/Z | Conventional storage tanks |
Jack Up Gas-electric Welder | MEGW -I/D | Jack Up tanks |
Multi-Pass Vertical Welder | MMAG -I | LNG&LPG tanks and Stainless tanks |
Self-shielded Gas-electric Welder | MEGW -S | No gas protection required |
