1.1 Function Introduction:

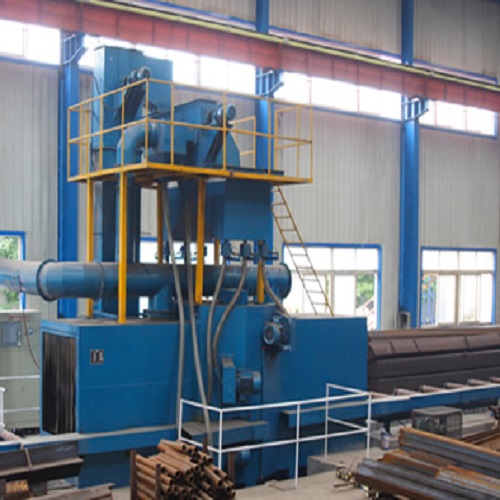

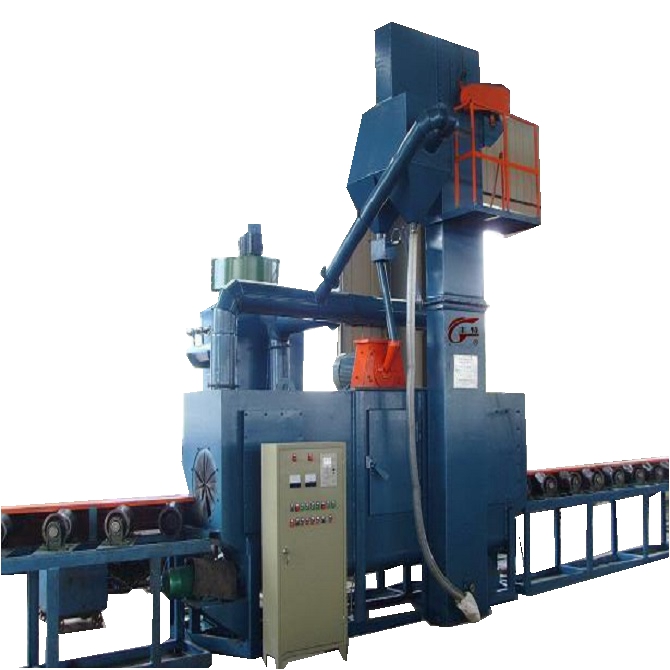

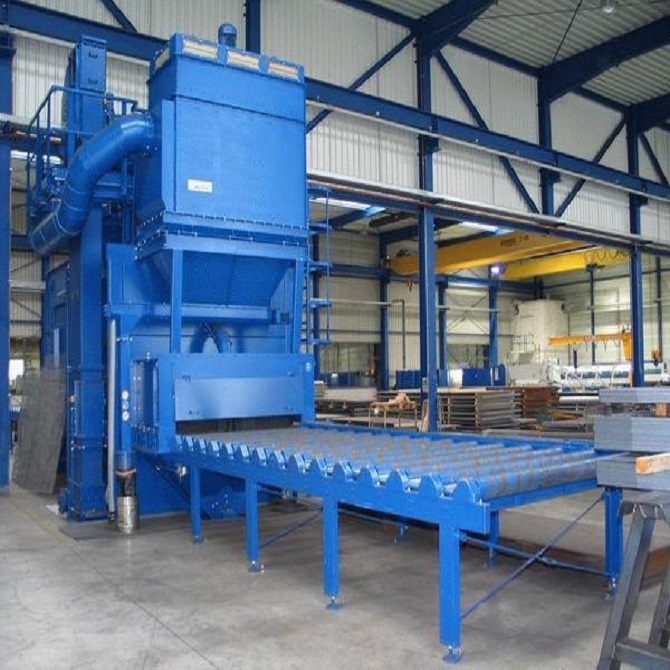

Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding workpiece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the workpiece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
1.2 Main Parameters:
Model | HP8016 | HP1018 | HP1020 | |
Suitable work-piece sizes (mm) | W*H | 800*1600 | 1000*1800 | 1000*2000 |
L | ||||
Quality standard | Surface clearness | A-B Sa2.0-Sa2.5 | ||
Surface roughness | 15-50um | |||
Shot blaster | Quantity (piece) | 8 | ||
Shot blasting quantity (kg/min) | 8*200 | 8*250 | 8*250 | |
Power (kW) | 8*11 | 8*15 | 8*15 | |
Input and output conveyor | Allowable load (kg/m) | 1000 | ||
Feeding speed (m/min) | 0.4-4 | |||
Ventilation capacity (m²/h) | 15300 | 20400 | ||
Shot recycle quantity (t/h) | 96 | 120 | 120 | |
Depth of pit (mm) | 2090 | 2210 | 2210 | |
Total power (kW) | 137 | 176.9 | 183.9 | |
Power supply | AC380V, 50HZ, 3P or tailor made | |||
Above are our standard models and parameters, and it can be designed and manufactured on request. |
*We reserve the right to alter specifications without prior notice.
