With the progress of society and the development of economy, people's demand for resources is increasing.From cars that need diesel to power plants that need oil.In short, oil, natural gas and other resources have become indispensable in daily life.But conventional rail and cruise transport is slow and uncertain.Gradually, people invented the method of pipeline transportation.
The transportation volume of pipeline transportation is large. Most of the pipeline is buried in the ground, which covers less land and is limited by terrain and objects, thus shortening the transportation distance.Sealed transportation, safe and reliable, long-term continuous and stable operation;Easy to manage, easy to realize remote centralized monitoring;Can good little, freight is low.
As a result, a large number of pipeline laying work was carried out in various countries, and thus the related companies specializing in pipeline laying work were also derived.We are specialized in providing pipeline construction equipment company.
Pipeline construction process
Surveying and setting out→and cleaning the construction work belt;To construct the construction road→to transport the anticorrosive pipe→to process the groove→to redistribute the pipe→to prepare the pipe mouth;Pipeline fitting-up→pipe fitting-up and welding→welding joint inspection→heat shrinkable sleeve (tape) bushing→trench excavation→pipeline trench→pipe fitting-up;Pipeline welding→welding joint inspection →cleaning and pressure test→pipe trench backfilling→geomorphologic restoration.
Equipment needed in the process:

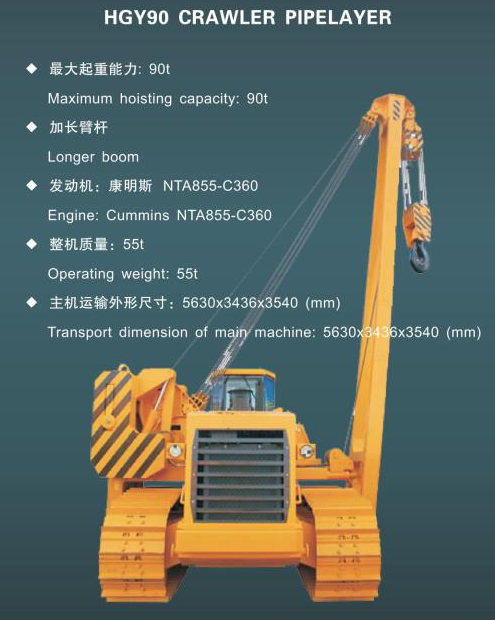

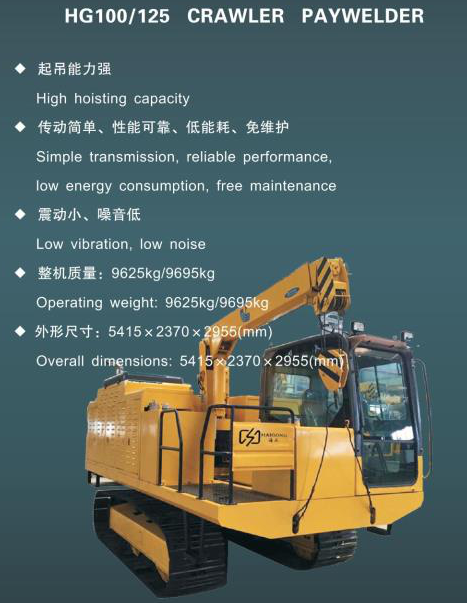

1. Transport the anticorrosive pipe

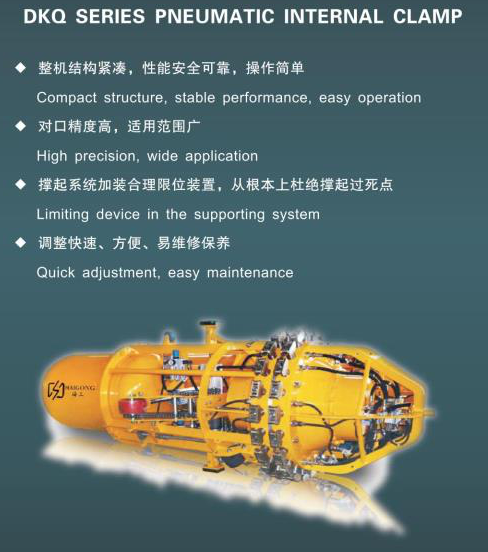

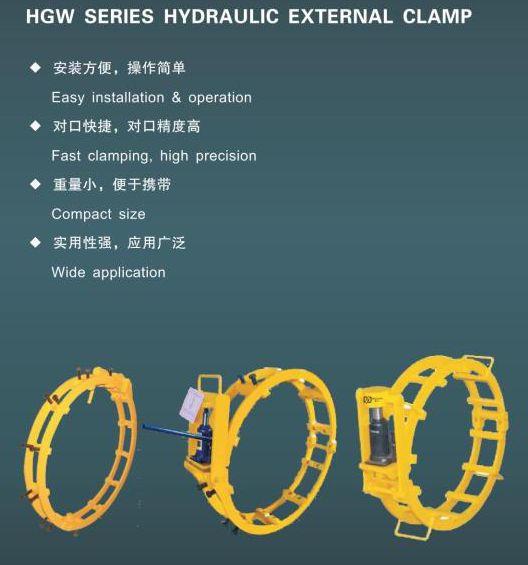

2. Pipeline fitting-up

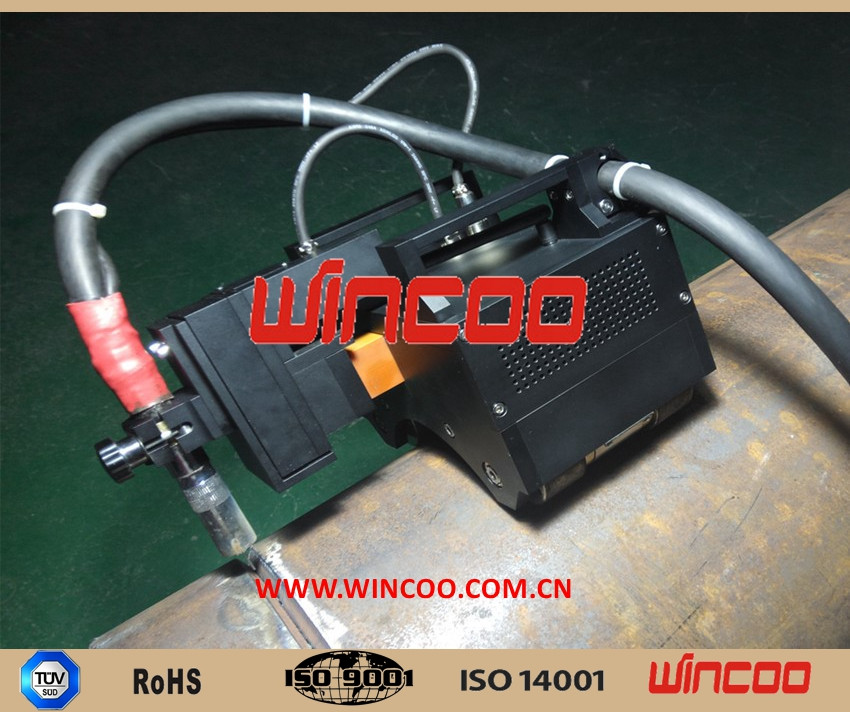

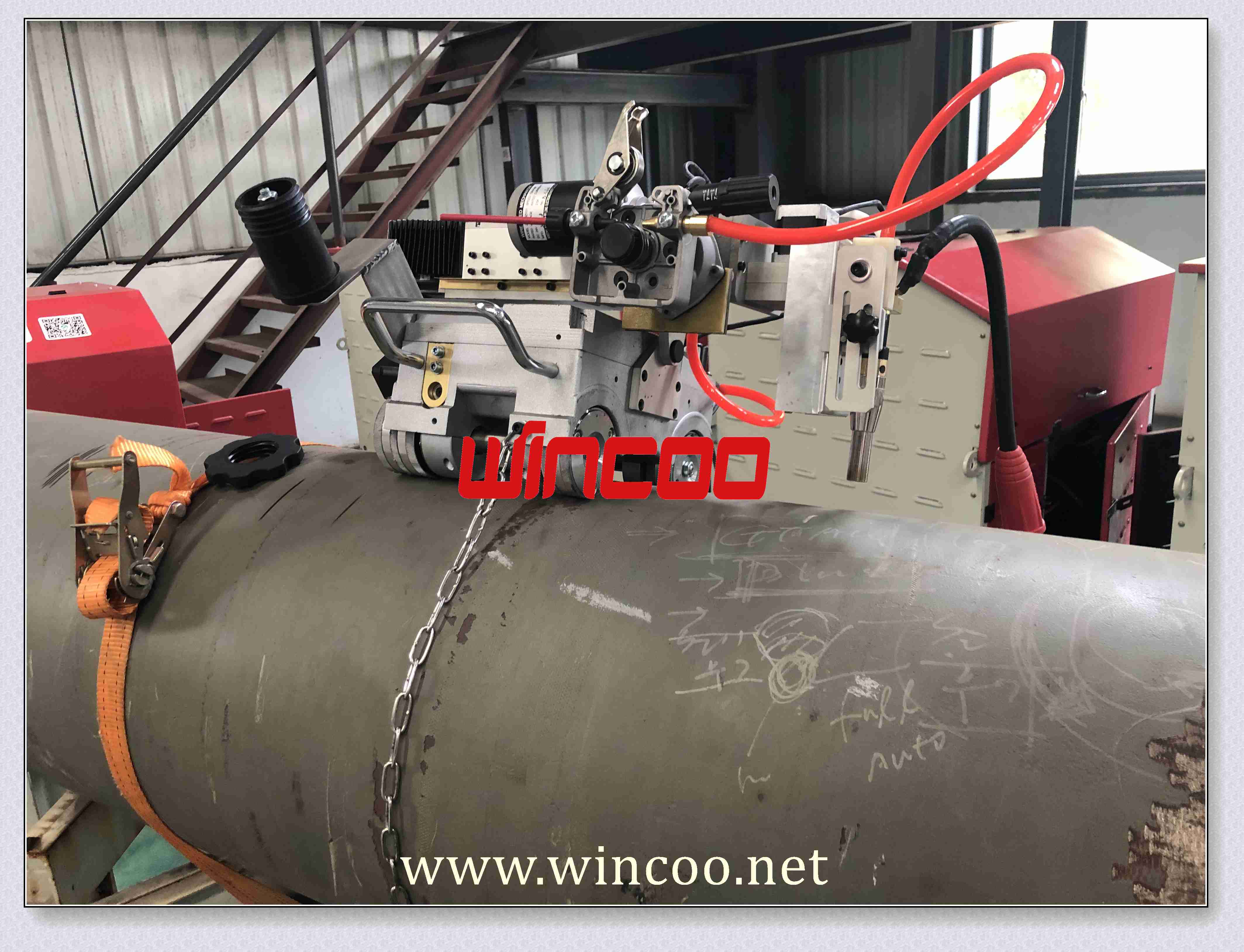

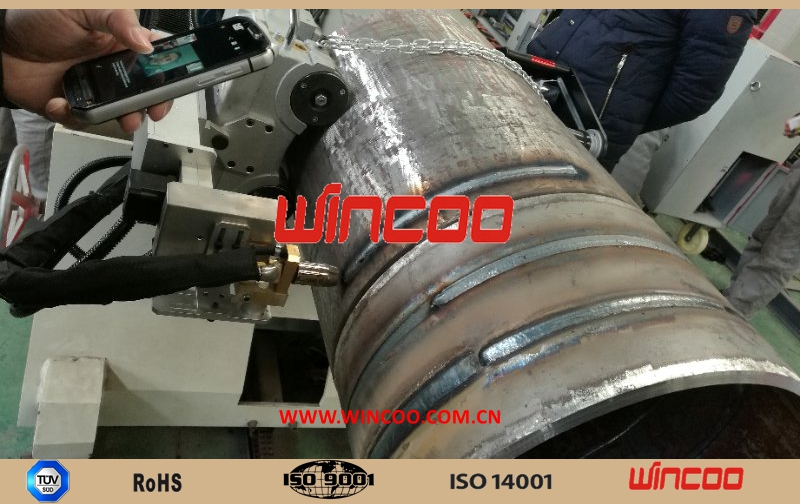

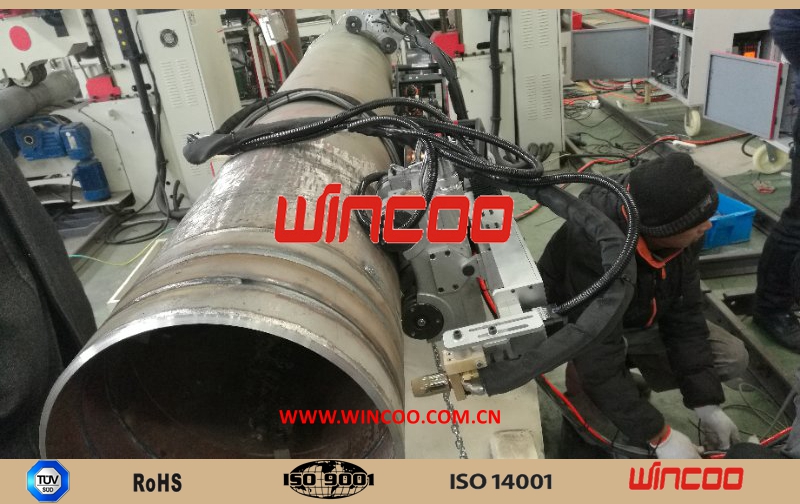

3. Pipe welding

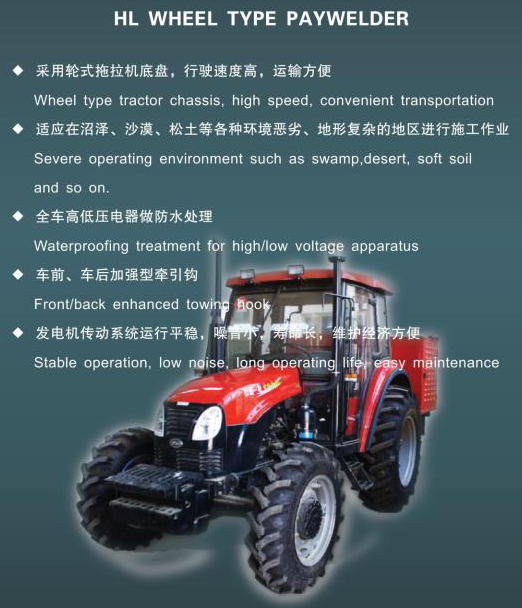

WELDING TRACTOR including power generator

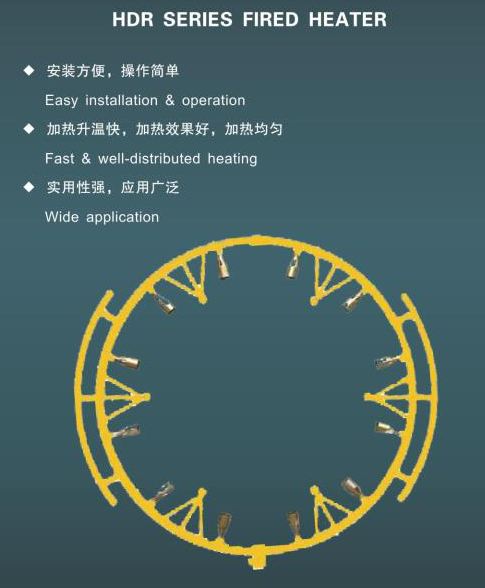

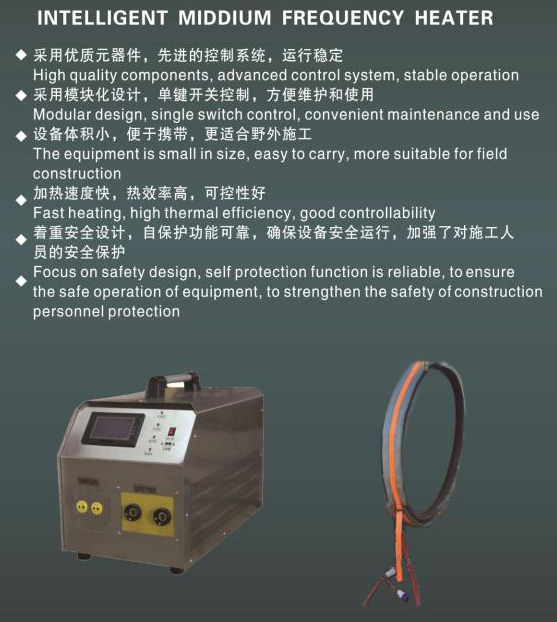

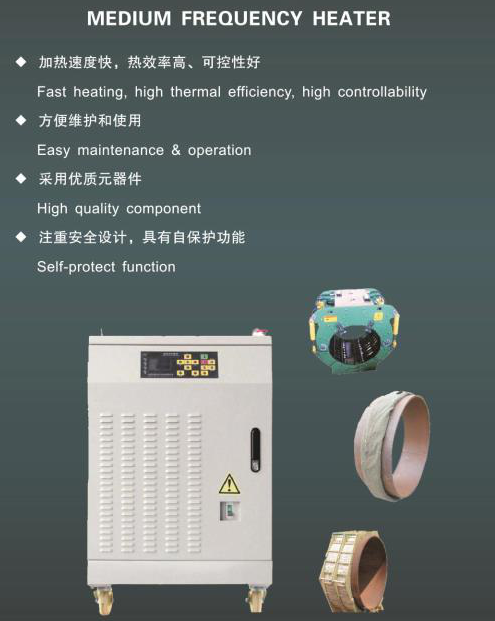

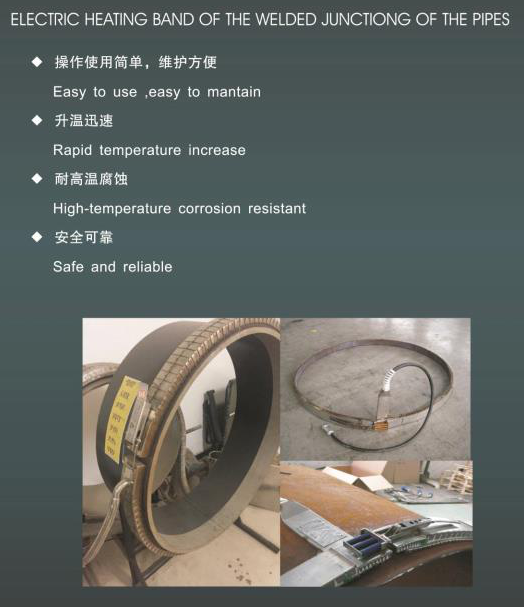

4.Heating device
5.Pipe bender
This type pipe bending machine is mainly used in the oil, natural gas, water and other long-distance pipeline construction site production of cold bending equipment.
弯管的管径范围 Bent pipe diameter | 6~20 | 16~30 | 22~36 | 32~40 | 36~48 | 48 ~56 |
适用弯管的类型 Bent pipe categeory | 可适用于螺纹管、直缝管、无缝管和内防腐层、及聚乙烯外防腐钢管的弯制,并不损坏钢管防腐层。 It can be applied to the bending of threaded pipe, straight seam pipe, seamless pipe and inner anti-corrosion layer, and polyethylene outer anti-corrosion steel pipe, without damaging the steel pipe anti-corrosion layer. | |||||
环境工作温度 Applicable environment | -40℃~+70℃ | |||||
发动机功率 kW Engine Power | 46 | 77 | 118 | 132 | 160 | 160 |
主油缸 Main Cylinder | 2个220×160 | 2个280×200 | 4个320×230 | 4个360×250 | 4个450×560 | 6个360×560 |
提升缸 Lifting Cylinder | 2个180×63 | 2个200×80 | 4个220×90 | 4个250×100 | 4个280×200 | 4个280×200 |
液压绞车拉力 Hydraulic Winch Pull | 1.5吨 | 3吨 | 7吨 | 7吨 | 8吨 | 12吨 |
整机尺寸mm Overall size(L*W*H) | 4450×2180×2175 | 6700×2520×2700 | 8400×3000×2800 | 8850×3180×3000 | 8600×2900×3250 | 8566×3190×3500 |
